| 主要技術參數 | |

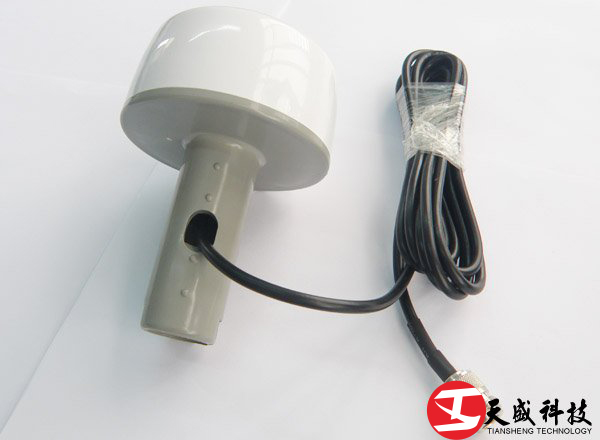

| 型 號Model | GPSTS004 |
| 頻 率Frequency range | 1575.42MHz±3 MHz |
| 駐 波VSWR | ≤1.5 |
| 增 益Gain | 3DBi |
| 放大增益Amplification Gain | 38DBi |
| 極化型式Polarization | Vertical |
| 最大功率Maximum input power | 50W |
| 輸入阻抗Impedance | 50Ω |
| 線型Cable type | RG174/RG58U |
| 線長Length | 10M or 15M |
| 接口型式Input Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX |
| 天線尺寸Dimensions of Antenna | ?96×126mm |
| 工作溫度Working Temp | -40℃~+85℃ |
| 重 量Weight | ＜140(克)gram |
